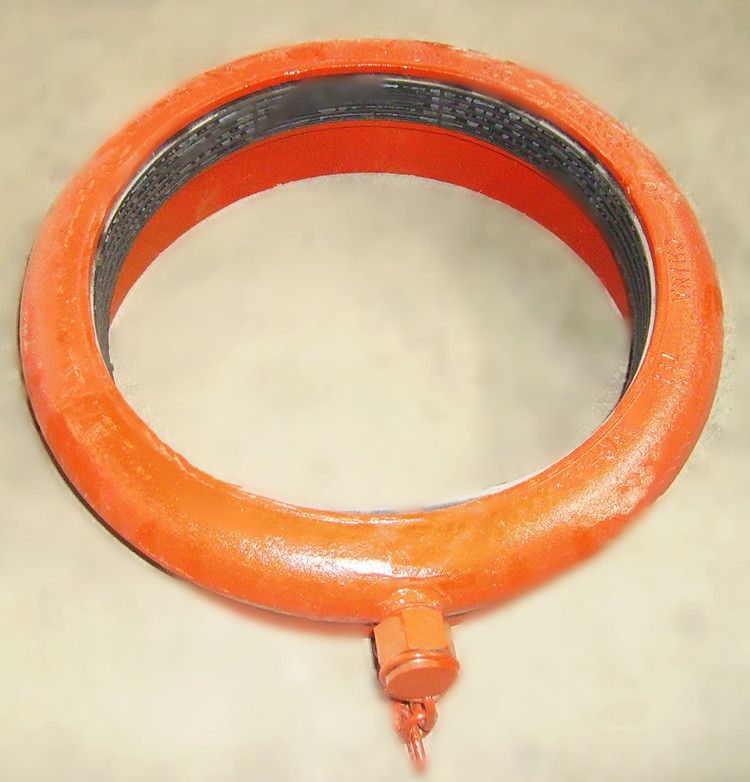

Air O Union of Rotary Drilling Hose
|
Product Description |
The Air O Union can be widely used for for low pressure, large bore, large alignment, often removable pipeline connection; especially for low pressure, large bore quick connection and disconnection between mud tanks of solid control system.

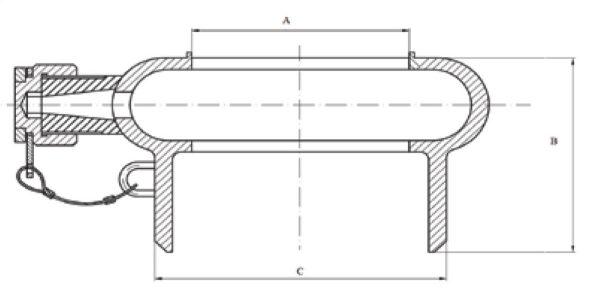

Product structure: steel housing, air tire
Working temperature: -45℃ to +50℃
Max. seal pressure (flow pressure in line): 0.4Mpa
Recovery time of pneumatic tube, after bleeding air: 1-3 seconds
Connection lines can adopt glass tube, or rubber hose with both end fittings; glass steel tube is corrosion resistant, easy for transportation, easy for bending, for line misalignment installation on site.
Production
Raw Material:
Low Carbon Steel (EN 1A, SAE 1020, SAE 1010 etc.)
Medium Carbon Steel (EN 8, EN 31, EN 9, SAE 1045 etc.)
Stainless Steel (SS304, SS310, SS316 etc.)
Factory Workshop:
Billet-cutting-forging-heating-lathe-drilling-inspection-marking-packing-exporting-union.
|
Packaging |

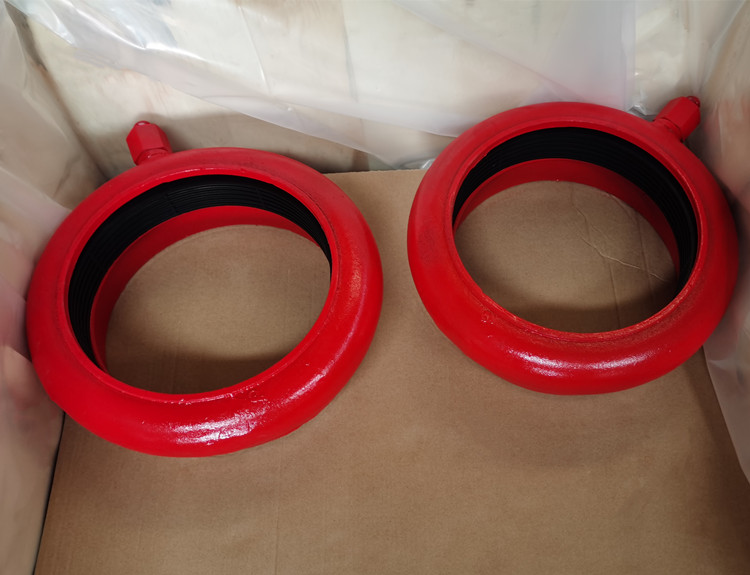

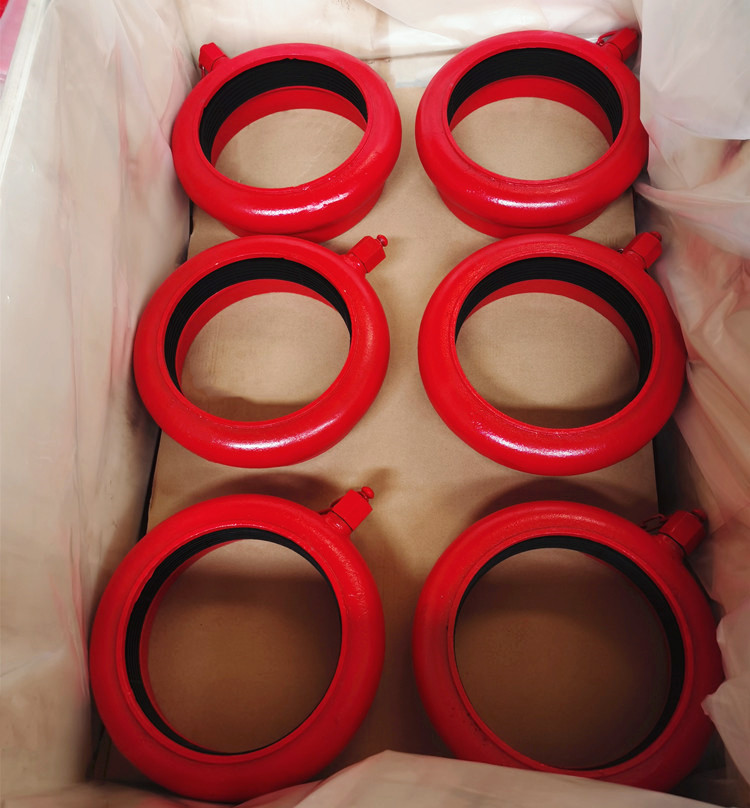

In general, the packing will use woven bag and plastic film.
Special packing is available according to customers’ requirements.
