Flange of Rotary Drilling Hose

                                                                 High Pressure Flange

The high pressure flange is forged from high strength alloy steel with imported advanced technology in the world. Strict heat treatment ensures uniform metallographic structure and bearing capacity. It is widely used in the petroleum and chemical industry, boilers and pressure vessels, ships and other sectors for high pressure connection.

Applicable Standards: API Spec 6A

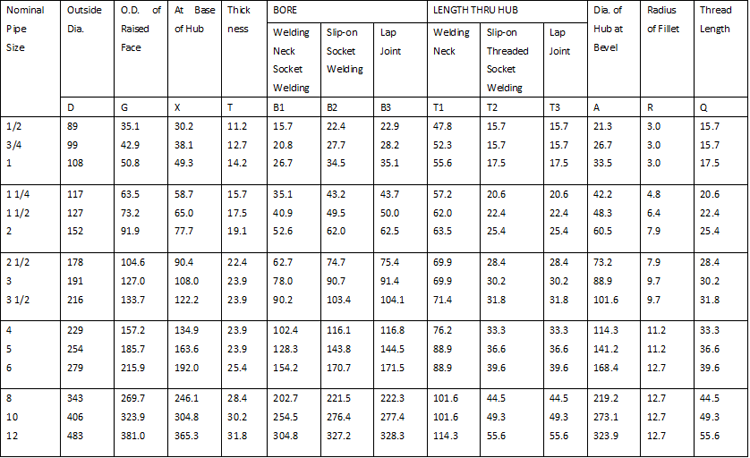

                                                                  Low Pressure Flange
                                       (American Standard ANSI B16.5 CLASS 150 FLANGES)

                                                                 Low Pressure Flange
                                   （American Standard ANSI B16.5 CLASS 150 FLANGES）

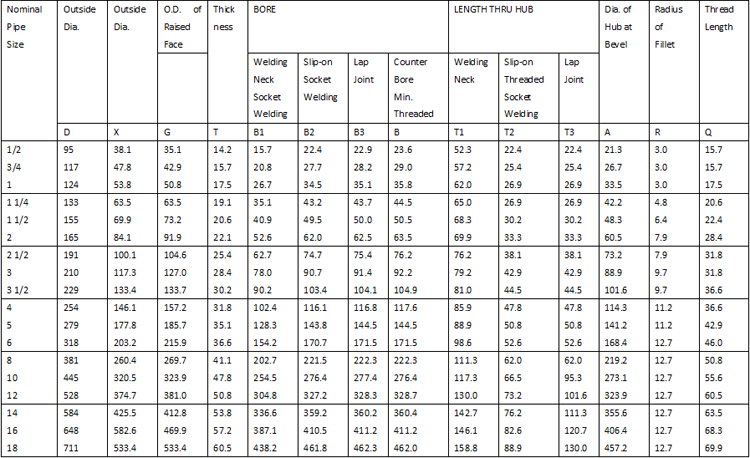

                                                                  Low Pressure Flange
                                    （American Standard ANSI B16.5 CLASS 300 FLANGES）

                                                                 Low Pressure Flange
                                  （American Standard ANSI B16.5 CLASS 300 FLANGES）

Low Carbon Steel (EN 1A, SAE 1020, SAE 1010 etc.)
Medium Carbon Steel (EN 8, EN 31, EN 9, SAE 1045 etc.)
Stainless Steel (SS304, SS310, SS316 etc.)

Production Process:

Billet-cutting-forging-heating-lathe-drilling-inspection-marking-packing-exporting flanges

In general, the packing will use woven bag and plastic film.

Special packing is available according to customers’ requirements.

1).  ADVANCED PRODUCTION EQUIPMENT

2).  ISO 14000 / ISO 9000 / QUALITY CERTIFICATE
3).  STRICT QUALITY CONTROL, STRONG R&D TEAM
4).  ENVIRONMENTAL FRIENDLY WITHOUT POLLUTION
5).  10 YEARS  MANUFACTURING EXPERIENCE, STRONG TEAM.
